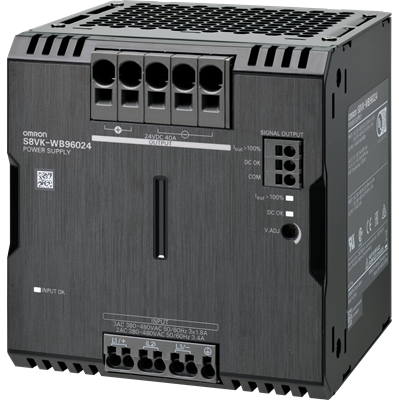

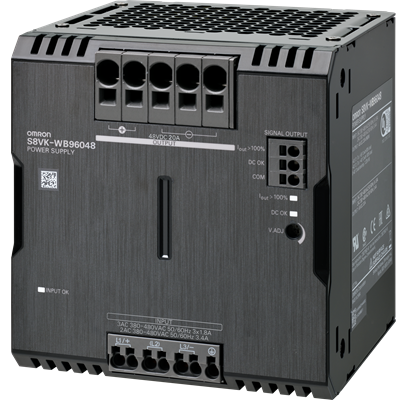

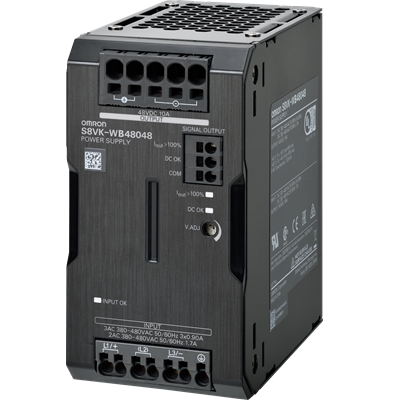

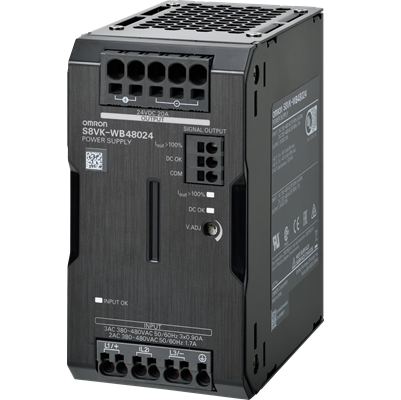

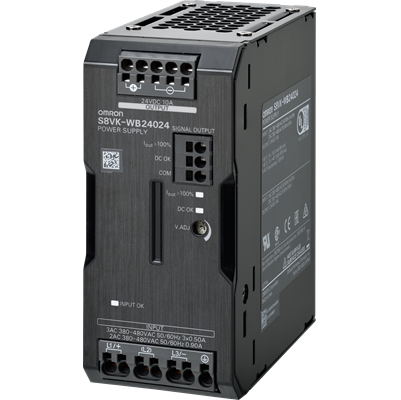

The 3 phase S8VK-WB series of power supplies adds additional features in a reduced footprint size. Available from 240 watts up to 960 watts with options for both 24VDC and 48VDC outputs. The S8VK-WB series adds additional features over the S8VK-T, like coated internal electronics, front panel visual status indicators and push-in plus termination while still supporting a wide acceptable input range including 3-Phase input (3 x 340 to 576 VAC) 2-Phase input (2 X 340 to 576 VAC) and DC input excluding 960W (450 to 810 VDC).
Overview
- Three phase power supply
- 380 to 480 VAC / 450 to 810 VDC Input Voltage
- 240 W, 480 W, 960 W models available
- 24 and 48 VDC Output Voltage models
- Coated PCBs for better environmental resistance
- Visual status operation indicators
- DC OK/I-out output indication terminals
- Wide operating temperature range (-40 to +70ºC) to guarantee operation stability
- Push-In Plus terminals for reduced installation time
- High efficiency (>93%) for reduced energy consumption
- Power Boost functionality (150%)
- 5 year warranty
