An OEM and embedded application focused smart camera available with multiple sensors and lens versions, the MicroHAWK F320 furthers Omron Microscan’s 30+ year legacy of innovative, space-efficient, miniature design with a locking RJ50 communication connector. Perfect for OEMs and machine builders, the F320 offers the perfect combination of size, performance, and flexible integration. It offers outstanding value and is the ideal solution for automation engineers looking for a cost effective yet powerful smart camera in a micro-sized product. The F320 offers the same machine vision software and most of the imager attributes as of the F430 series, but with a different set of communication interfaces, IP rating and power specifications.

  • Ultra-compact (51.5 mm x 38.8 mm x 24.1 mm)
  • IP40
  • USB 2.0 Full-Speed (Ethernet over USB and HID), RS-232
  • Integrated targeting and read/pass LED indicators. Outer LED lighting not available on this product family, but it does have the same inner LEDs (4 Red and 4 White similar to the F4xx families)
  • Broad offering of cabling, power supply, and optical accessories
  • 5 VDC power input
  • 500 MHz processor speed
  • Suitable for machine vision inspections, measurements, presence/absence, parts location, robot guidance, OCR, OCV, Code reading and even Code verification
  • Can be programmed via AutoVISION software for simpler yet powerful machine vision applications or via Visionscape programming software for more advanced applications

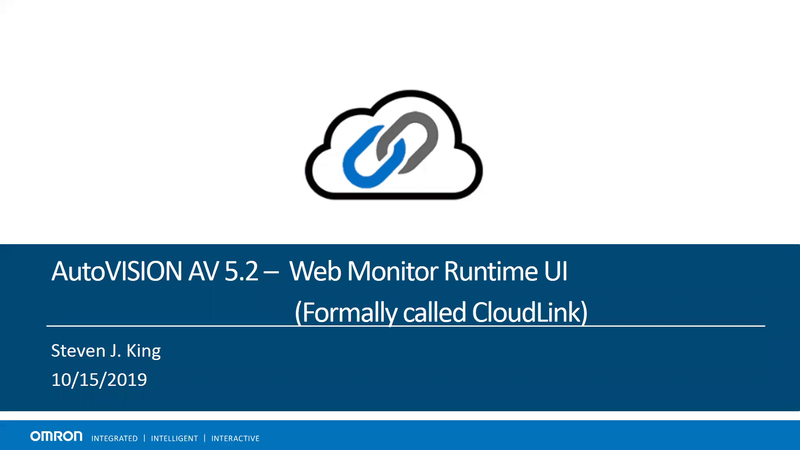

  • Web-browser monitoring capability via Web Monitor (former CloudLink)

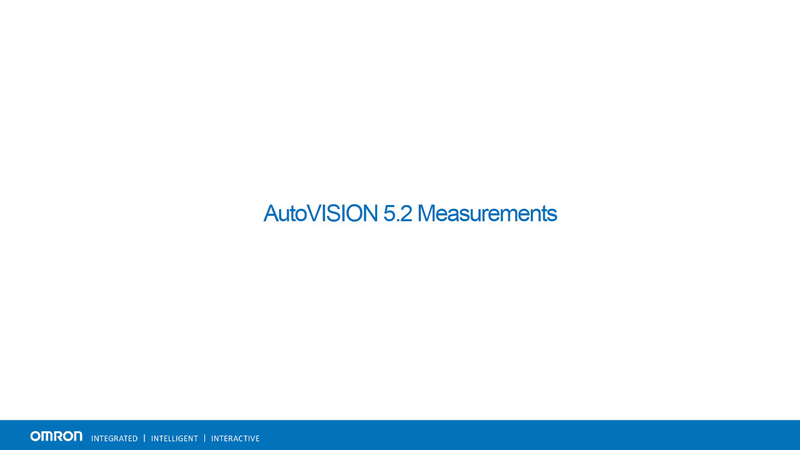

  • Non-linear calibration (NLC) added to the new MicroHAWK family. NLC greatly improves the MicroHAWK measurement and locator capability by a factor of 20 and uses real world units, not just pixels. It turns the MicroHAWK into a precision measurement camera and cancels out lens distortion allowing users to compensate for lens distortion and perform precise measurements
  • Field upgradable licenses

The MicroHAWK® family of barcode readers offers the most versatile decoding power available. Built on the highest-performance imaging engine in its class, MicroHAWK readers offer an array of modular hardware options to take on any decoding task in four micro form factors.
