VT-S1080 AOI Pre/Post-Reflow Machine
Enchanced-3D automated optical inspection combining Omron’s MDMC color-highlight illumination, sophisticated image processing and full 3D MPS technology to achieve advanced capabilities and reliable p...
Achieve zero defects with intelligent, in-line solutions
Omron's proven inspection systems and enhanced software tools help manufacturers move closer to zero-defect production. With in-line, high-throughput and x-ray based solutions, Omron’s inspection machines can tackle a variety of PCB applications.
Omron provides a full range of SPI, AOI and AXI systems which are easy to use and offer fast inspection program generation. These solutions meet the complete inspection needs of any SMT manufacturer by helping identify the root cause of a failure while ensuring that escapes and false calls are eliminated.
Advanced AOI inspection solutions from a trusted industry pioneer
How do Omron’s innovations in AOI, AXI, and 3D SPI help you not simply identify defects, but actually prevent them from occurring in the first place? Watch this video to get a closer look at our integrated, intelligent, and interactive solutions that help you improve print quality, balance capability with speed, and maintain confidence in the quality of your product going out the door.
VT-X750 CT AXI Machine
Fast 3D CT Automated X-Ray inspection, with a resolution of 3um, capable of dividing a single solder joint into hundreds of cross-section slices for individual measurement and analysis
VP9000 Series Solder Paste Inspection Machine
VP9000 – 3D Solder Paste inspection with multiple resolution and configuration options to best meet the needs of the application
VT-S530 AOI Pre/Post-Reflow Machine
2D and 3D automated optical inspection featuring Omron’s industry leading color highlighting technology, detailed production monitoring tools, and completely offline programming and review software.
VT-S730 AOI Post-Reflow Machine
Complete 2D and 3D automated optical inspection, bundled with Omron’s color highlighting technology, detailed production monitoring tools, and fully offline programming and review station software.
VT-M121 Dimensional and Visual Inspection Machine
Completely customizable dimensional inspection, fitted with Omron’s advanced motion and vision technology to provide repeatable measurements on a variety of applications
IP Inspection Pro 3D Verification/Repair Station
High resolution live video feed, synchronized with inspection results from Omron AOI systems
Q-upNavi Quality Control and Process Improvement Software

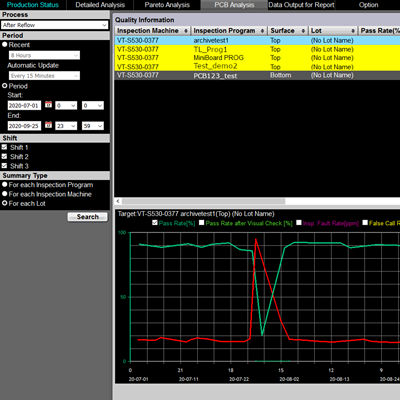

Process monitoring and quality control software with live side-by-side comparison and visualization tools, capable of gathering data from every SPI, AOI, and AXI inspection
Watch demos of our key technologies
Introduction to the VT-S730 and VT-S530 3D AOIs
Brad Ward, automated inspection segment manager, and Karl Long, application specialist in AOI technology, discuss Omron's VTS 3D AOI before showing an AOI in action at a customer facility.
VT-X750 3D CT AXI Product Demo
Learn more about Omron's VT-X750 3D CT AXI ma from Omron engineers.
VP9000 SPI Inspection Product Demonstration
Watch a detailed overview of the VP9000 3D SPI platform, including an on-site visit to Dynalab EMS in Columbus, Ohio.
Quick Answers
Learn more about these automated inspection topics
Why is AOI critical?
Automated Optical Inspection (AOI) is a fast and effective way to measure and classify every solder joint in a PCB assembly line.
Through rule-based inspection criteria, Omron’s AOI machines automatically analyze each solder joint and measure their characteristics against IPC standards. Additionally, every measurement is saved and tracked with Omron’s process control software which helps users spot potential production trends and eliminate defects.
Why do I need SPI?
While AOI is capable of pinpointing defects that occur after components have been placed, Solder Paste Inspection (SPI) is the only means of ensuring that the paste is properly deposited.
SPI measures the amount and location of the solder at each pad and can report potential issues. The SPI machine is also able to act as a feedback loop and provide real-time adjustment data back to the printer to perform subtle stencil alignments automatically.
Simply put, SPI has the ability to reduce the most amount of potential scrap by spotting potential solder issues before they ever happen.
The advantages of CT X-ray
A 3D CT X-Ray system captures a complete volumetric image of every solder joint allowing for unparalleled inspection capability.
Unlike traditional 2D methods, this approach removes any interference from components above, below or nearby ensuring hundreds of high-quality cross-section images.
The Omron CT X-Ray inspection system also measures each solder joint automatically, providing a systematic approach with extremely repeatable results.
How Omron stands out
Omron has over 30 years of experience as it was the first company to introduce the color-highlighting method to the automated I\inspection Industry.
The latest generation of Omron machines utilizes multiple inspection techniques producing results of the highest quality. Omron’s inspection solutions also offer completely offline programming, allowing for minimal production downtime as new programs are created.
Each machine is also connected to the same intelligent process control system which, operators and engineers can use to monitor real-time production quality and prevent process deviations.
