The J7MC Manual Motor Starter allows you to manually turn On/Off the motor while having fuse-less protection against short-circuit, overload and phase failures. Recommended to use with J7KC contactor.

    +1 (800) 556-6766DatasheetCAD Download
    Get a QuoteProduct Support
    Tabs

    Overview

    • On/Off control
    • Best matched for AC-3 Class motor drive
    • W x D x H (45mm X 46mm  x67.5 mm)
    • In combination with magnetic contactor model J7KC, it is ideal for control of motors to AC-3 class, 2.2 kW (200 to 240 VAC) * or 5.5 kW (380 to 440 VAC)

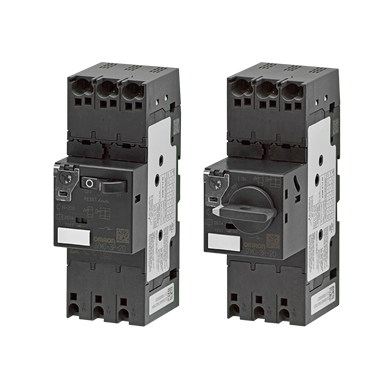

    • Rocker switch (standard type) and rotary switch (high-performance type)
    • High breaking capacity (Max100 kA/440 VAC)
    • Equipped with a dial cover as standard to protect accidental setting changes. Lockable with a padlock to ensure safety at startup
    • Certified as compliant with the main safety standard
    • Push-In Plus wiring technology saves wiring and maintenance time
