Precise liquid fill level measurement

Accurate and precise measurement of liquid levels is critical for ensuring the proper functioning of diagnostic devices, lab automation systems, and other liquid handling processes. Clinical and In-Vitro Diagnostics, for example, require precise liquid level measurements to ensure the correct volume of reagents and samples are used, which directly impacts the success of analysis. Similarly, in lab automation systems, accurate liquid level measurement is essential for maintaining the integrity of experiments and ensuring reliable results.

Challenge

Manual liquid measurement

Precise liquid handling is essential in both Life Sciences manufacturing and laboratory automation systems. In these systems, it is crucial to validate the volume of liquid to ensure proper function of life saving devices and medicines, as well as guarantee the accuracy and reliability of test results.

  • Manual inspection is low-accuracy and slow
  • Visual inspection is repetitive and low-value
  • Labor shortages creates bottlenecks and burdens other workers

Solution

Machine vision systems

Machine vision excels at detecting the meniscus in vials and the liquid edge in test tubes, even in minute quantities. It accurately measures droplet sizes and liquid spots from outside the vessel, facilitating result correlation in lab testing procedures and fill levels in production.

  • Automatic inspection solutions enable precise, μ-level measurements
  • Automation unifies inspection standards
  • Allows for larger production volumes

Automated pipetting solution for rapid sample evaluation

Manually transferring liquid samples to testing tubes is time-consuming and prone to human error. Automated pipetting solutions eliminate these challenges by leveraging the capabilities of the OMRON Cobra 450 robot. This four-axis Scara robot offers excellent repeatability and precision, making it ideal for precise liquid filling. The solution automates the entire process, including reading QR codes on the original tubes and allocating each sample to the correct compartment in a 'deep well' plate with 96 compartments.

Learn More

Enabling Technologies

  • Omron NX102 controllerMachine Automation Controllers
    NX102 Machine Automation Controllers

    The NX1 series is the next standard in automation control that is IIOT ready and designed to meet many modern manufacturing needs.

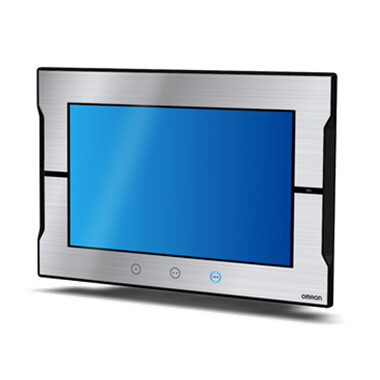

  • Omron NA Series HMIsHuman Machine Interface
    NA Series HMIs

    With the need for increased performance, NA HMI terminals make it fast and easy to implement dynamic intuitive user interfaces.

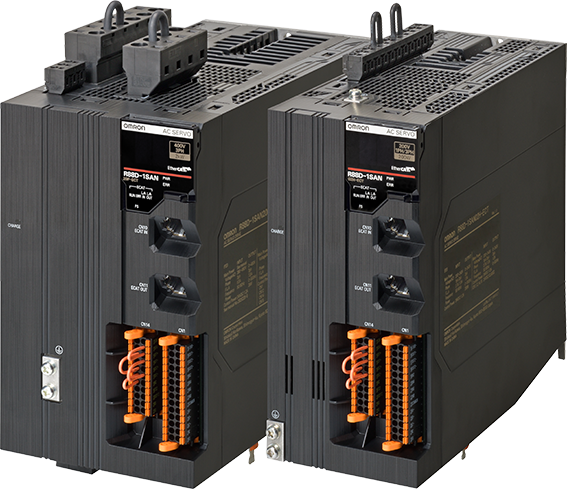

  • Omron 1SA servosSafety Rated Servo Motors and Drives
    1SA Servo Systems

    Motion control to handle the most precise high-speed applications, with the flexibility for any application

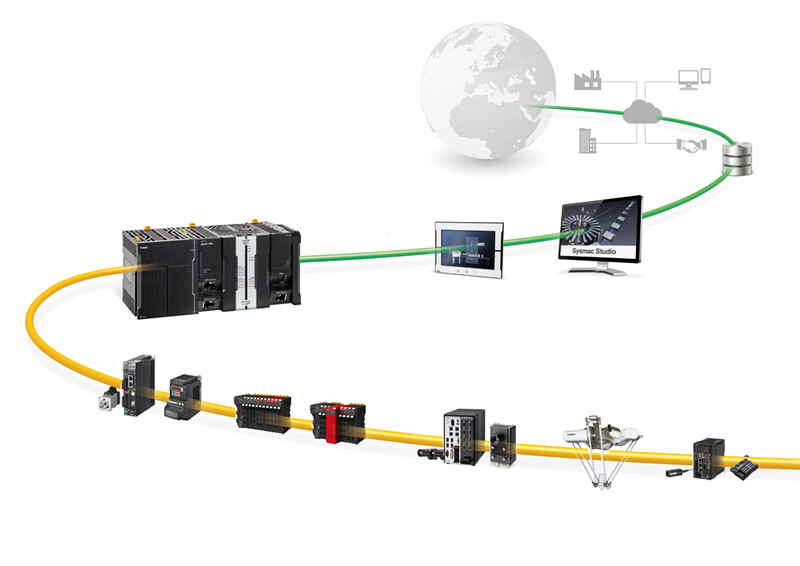

  • Sysmac automation platfromAutomation Platform
    Sysmac Automation Platform

    Sysmac is a powerful and robust machine automation platform from Omron that centralizes control of motion, vision, robotics, safety and more.

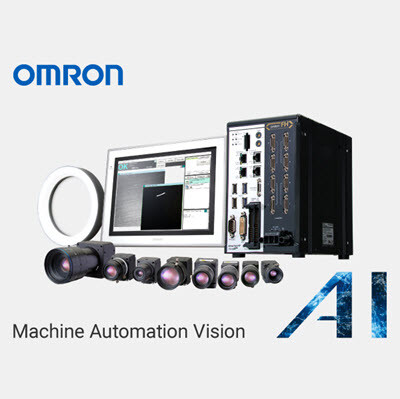

  • Omron FH 5050 vision systemVision Systems
    FH-5050 Vision System

    Omron’s FH-5050 vision system is a compact, yet powerful, solution for advanced quality inspection, identification and positioning.

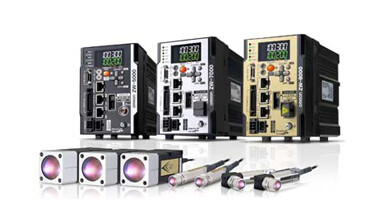

  • ZW High-Speed SensorMeasurement Sensors
    ZW High-Speed Sensor

    The ZW harnesses the white light confocal principle for stable measurements during movement for quality inspection without compromising manufacturing speed.

WideTabs

Success Stories

Related Solutions

Life Sciences Industry Solutions >

See more of our comprehensive automation and digital solutions for the evolving needs of medtech and pharma.

Data Synchronization >

Our data synchronization solutions prevent data tampering through encryption of regular backups, eliminating human error and the risk of quality issues.

Unlock new possibilities with Omron life sciences

Contact us now.
