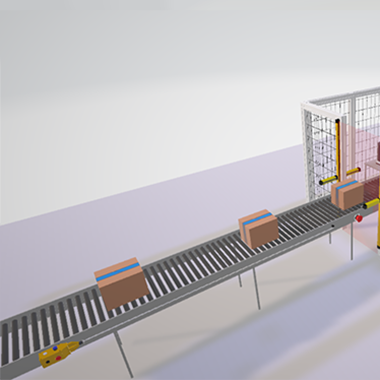

Conveyer to Cell

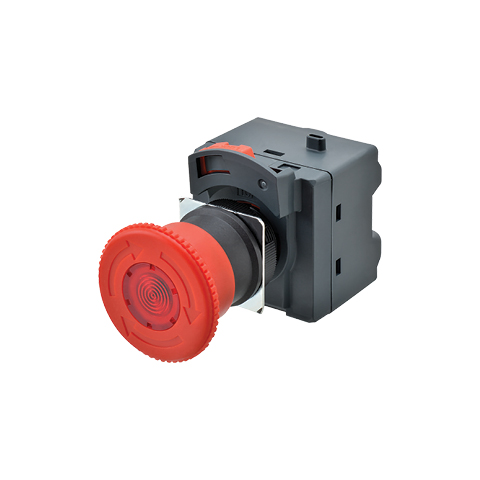

This area of the machine has fewer moving components and does not need guards. Rope-pulls and E-stops along the roller will allow an operator can shut the machine down if necessary.

Entrance to Cell

As the box enters the loading cell maintain the highest amount of guarding possible. F3SG-SR light curtains have programmable muting and fixed blanking activated, guarding above and below the roller.

Interior of Cell

A door allows access to the interior of the cell. Zone 3 is guarded by non-contact door interlocks, and safety scanners in opposing corners to ensure safety of the interior cell during operation.
